Price: | $29.99 |
Shopping: | |
Dispatch : | Ships within 5-7 business days |
Sold : | 15969 |
1+ units | 10+ units | 112+ units | Large order |
$29.99 | $26.99 | $25.99 | Inquiry |
Item Weight | 3.84 ounces |
---|---|

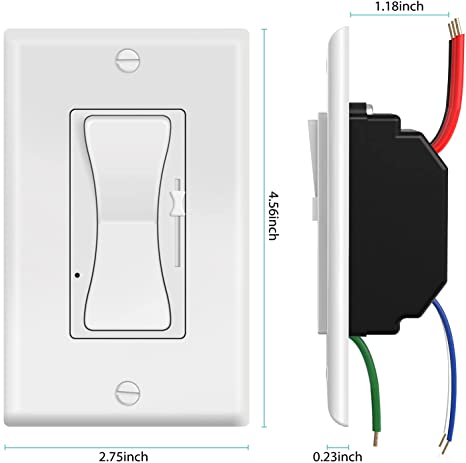

Product Dimensions | 2.6 x 1.6 x 4.6 inches |
Color | White |
Voltage | 120 Volts |
Wattage | 600 watts |
Item Package Quantity | 1 |
Type of Bulb | LED, CFL, Incandescent, Halogen. |
Plug Profile | Pole,Wall |
Certification | UL, ETL |
Special Features | 3-Way or Single Pole |
Usage | Ceiling fan |
Batteries Included? | No |

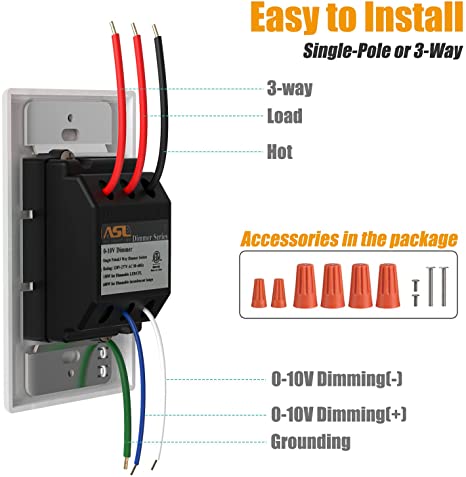

This 0-10V dimmer is single pole&3 way types. And pls check that there are 2 different wires. The 4 thicker ones are for AC wire, and the thinner 2 ones for LED drivers.
For single pole wiring: Ignore the Red one with sticker. Connect the other red wire to the load(LEDs),Black wire connect to the Hot wire,Green wire is for gounding. The blue wire connect to driver's DIM+, white wire to driver's DIM-.For 3 way wiring: you need to connect to 3 way normal switch to control the LEDs at 2 different places.
2 Red wires connect to the 3 way switch(Red screws)
Black wire connect to load
The 2 thinner wires are the same connecting way as single pole wiring.
